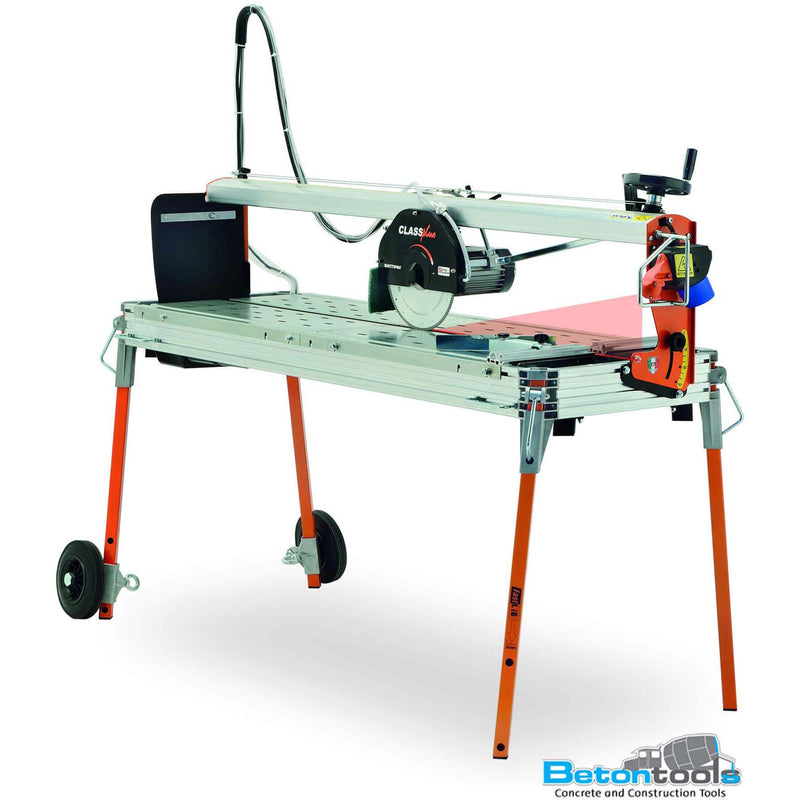

Battipav C/W Blade, Lead, Laser & Wheels 1300mm CLASSPLUS-1300S
SKU CLASSPLUS-1300S
by Battipav
Original price
$3,700.00
-
Original price
$3,700.00
Original price
$3,700.00
+GST
$3,700.00
-
$3,700.00
Current price
$3,700.00
+GST
Availability:
In stock
Tile cutter for straight and jolly (45° angle) cuts of single and double fired ceramic, porcelain stoneware and marble.
CLASS PLUS is a radial tile cutter ideal for straight and 45° angle cuts on porcelain
stoneware, tiles and marble.
New design with vanguard technical innovation, strong and precise, it is equipped
with POWERFUL MOTOR sliding cutting head and tilting engine.
It is built to work with diamond disks ˜250 mm special gres.
Laser instrument and kit wheels are supplied standard only for the "S" version.
Equipped with:
- Single-phase motor 230V~50Hz 1,4Kw
- Sliding cutting head and tilting engine
- Thermal protection
- Switch with release coil
- Adjustable legs
- Adjustable goniometer fence
- Water recycling pump type S1/4
Water cooled
- Disk ˜250 mm special gres included
Technical Specification:
- SIDE BENCH DIMESION: 1354x523 mm
- MACHINE'S DIMENSION: 1755 x 675 x H 1300mm
- WEIGHT: 55Kg
- SIZE TILE FOR DIAGONAL CUTTING: 820X820 mm (920x920 mm with H. max 42 mm)
- MAX CUTTING LENGHT: 1160 mm (1300 mm with H. max 42 mm)
- MAX CUTTING THICKNESS: 65mm
- MAX CUTTING DEPTH FOR 45° (JOLLY) CUT: 53mm
- MAX CUTTING DEPTH WITH 2 RUNS: 80mm
- ROTATION SPEED: 2800rpm
- POWER ENGINE: 1,8Hp / 1,4Kw
- THERMIC PROTECTION: 170°C
- ENGINE TYPE: SINGLE-PHASE 230V~50Hz
- TOOL HOLE: ˜25,4 mm (also ˜15.8mm)
- DIAMOND BLADE DIAMETER: ˜250 mm
- WATER PUMP: S1/4
- WATER TANK CAPACITY: Min. 22 / Max. 28 liters
- SIDE TILE SUPPORT: Optional
- LONG SLOT FOR SIDE TILE SUPPORT: Optional
- TILE LOCK SYSTEM: Optional
- CUTTING PROGRESS SYSTEM: Standard
- EXTENSION SIDE BENCH: Optional
- WHEELS: Standard
- FENCE: Standard
- LASER INSTRUMENT: Standard
