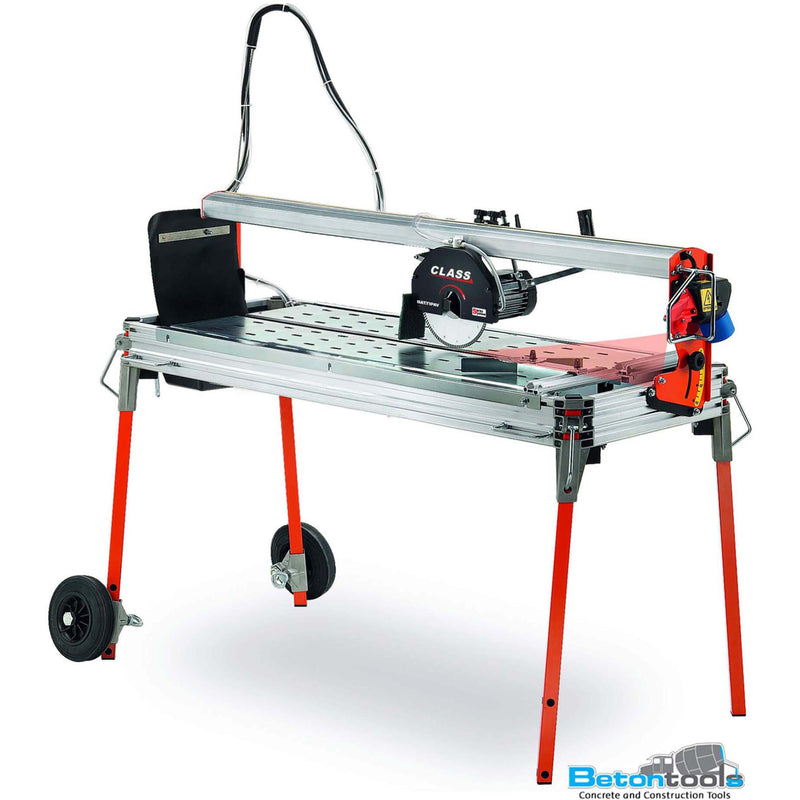

Battipav C/W Wheels And Blade 1100mm CLASS-1100
SKU CLASS-1100
by Battipav
Original price
$2,726.36
-
Original price
$2,726.36
Original price
$2,726.36
+GST
$2,726.36
-
$2,726.36
Current price
$2,726.36
+GST
Availability:
In stock
Tile cutter for straight and jolly (45° angle) cuts of single and double fired ceramic, porcelain stoneware and marble.
CLASS is a radial tile cutter ideal for straight and 45° angle cuts on porcelain stoneware, tiles and marble. New design with vanguard technical innovation, strong and precise, it is equipped with sliding cutting head and tilting engine. It is built to work with diamond disks ˜ 200 mm. Laser instrument and kit wheels are supplied standard only for the “S” version.
Equipped with:
- Single-phase motor 230V~50Hz 1,0Kw
- Sliding cutting head and tilting engine
- Thermal protection
- Switch with release coil
- Laser instrument
- Kit wheels
- Adjustable legs
- Adjustable goniometer fence
- Water recycling pump type S0
Water cooled
- Disk ˜200 mm special gres included
Technical Specification:
- MAX CUTTING LENGHT: 1100 mm
- SIZE TILE FOR DIAGONAL CUTTING: 775x775 mm
- MAX CUTTING THICKNESS: 40mm
- DIAMOND BLADE DIAMETER: ˜200 mm
- TOOL HOLE: ˜25,4 mm
- POWER ENGINE: 1,3Hp / 1,0Kw
- LASER INSTRUMENT: Standard
- ENGINE TYPE: SINGLE-PHASE 230V~50Hz
- ROTATION SPEED: 2800rpm
- WHEELS: Standard
- SIDE BENCH DIMESION: 1084x523 mm
- MACHINE'S DIMENSION: 1570x675x H 1275m
- WEIGHT: 48Kg
- MAX CUTTING DEPTH FOR 45° (JOLLY) CUT: 40mm
- WATER PUMP: S0
- THERMIC PROTECTION: 170°C
- WATER TANK CAPACITY: Min. 18 / Max. 23 liters
- FENCE: Standard
- EXTENSION SIDE BENCH: Optional
- LONG SLOT FOR SIDE TILE SUPPORT: Optional
- SIDE TILE SUPPORT: Optional
- MACHINE'S DIMENSION IN STOCK: 72x150x94 cm
- MAX CUTTING DEPTH WITH 2 RUNS: 55mm
