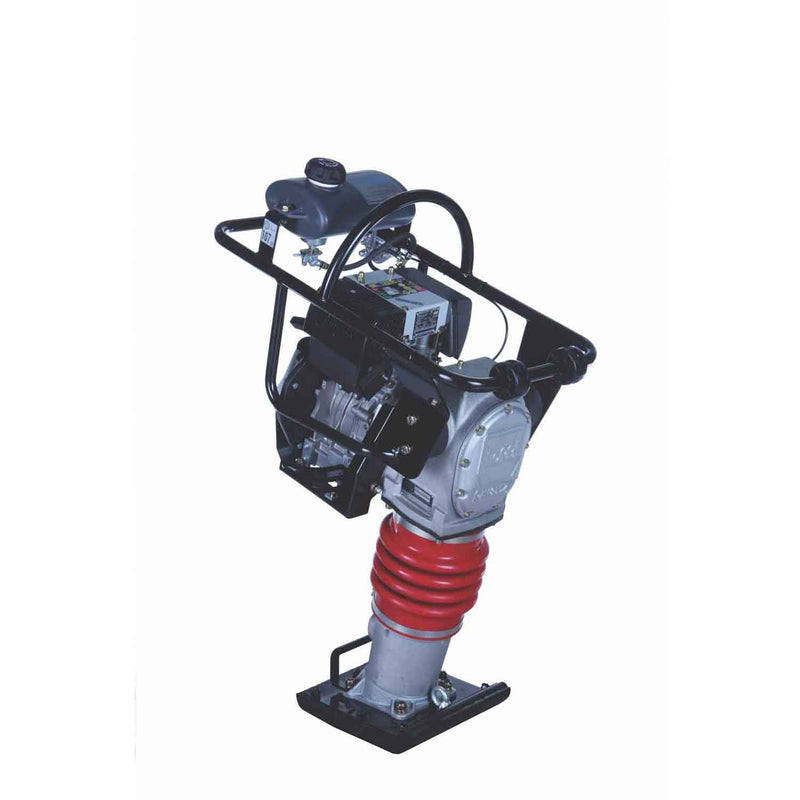

Hoppt HATZ 1B20 Diesel Vibratory Rammer - 85kg - RAM85DZ

HOPPT HATZ 1B20 Diesel Vibratory Rammer - 85kg

The Hoppt range of Tamping Rammers are engineered to be a balanced and ergonomically designed unit to suit the harshest conditions. Versatile with a compact and appealing design ensure maximum comfort and productivity.

Features:

• Triple Air Filter system
• Throttle lever with kill switch and interlocking fuel cut out in easy reach for safety
• Low Vibration Handle
• Lifting point for easy transportation
• Quality German made bellows
• Roller wheels for better mobility
• Tacho & Hour Meter for service scheduling

Specifications

• Operating Performance: 3.5 kW
• Percussion Rate Max.: 650-700 blows/min
• Operating Weight: 90
• Weight (kg): 90
• Max Working Speed (m/min): 8-11
• Ramming shoe size (WxL): 335 x 285 mm
• Stroke (mm): 82
• Engine Options: Hatz 1B20 @ 3.5kW (4.6hp) 4-Stroke Diesel (Recoil-Start)
• Net Weight (kg): 90
• Engine / Motor Manufacturer: Hatz
• Impact Force: 17.7 kN
• Overall Dimensions: 735 mm (L) x 410 mm (W) x 1090 mm (H)
• Warranty Period: 1 Year
• EAN: 797776015559
