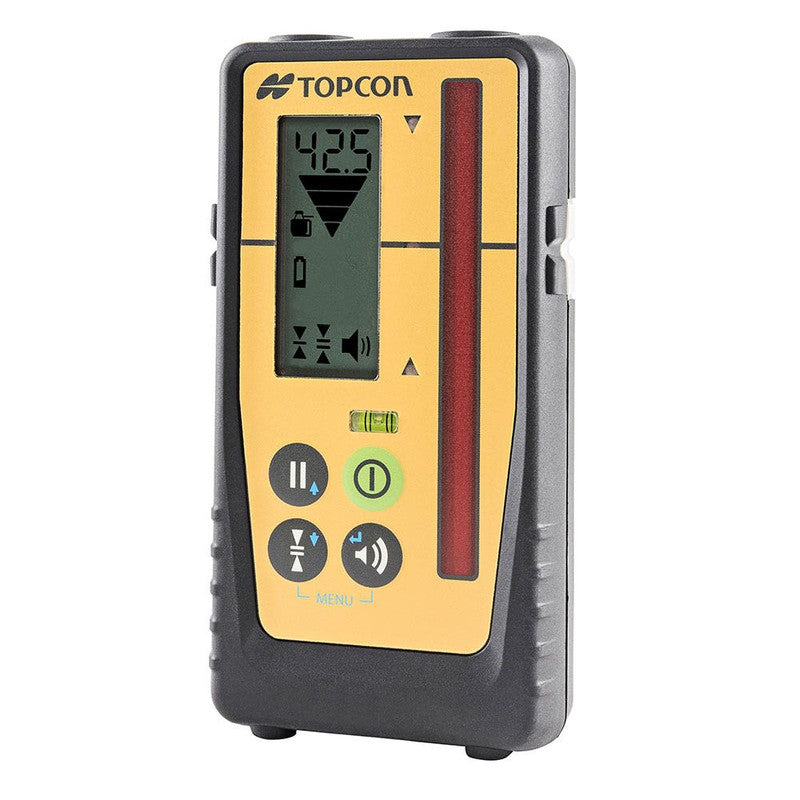

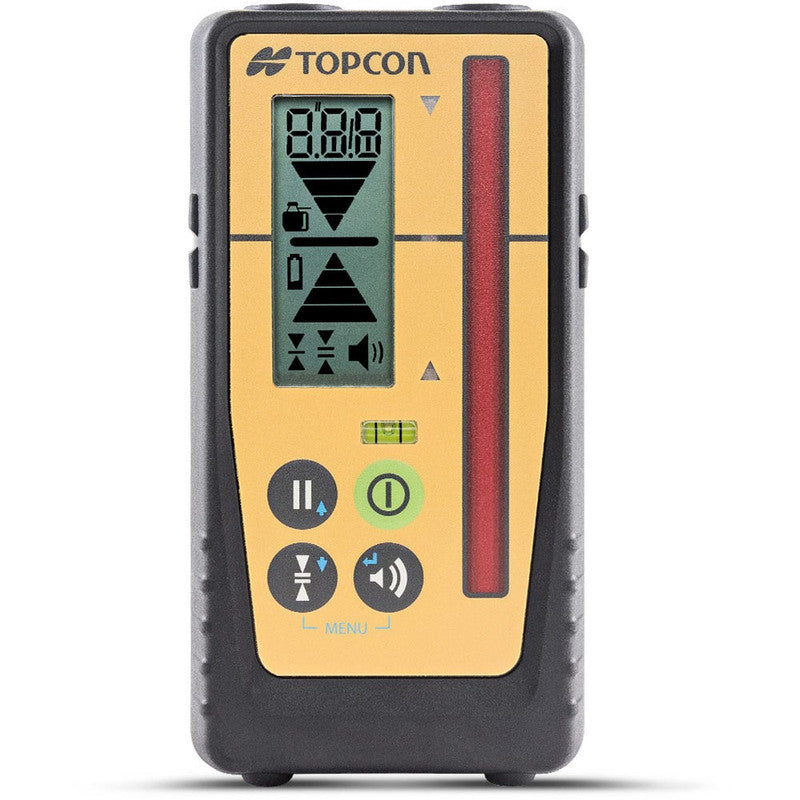

Topcon LS-100D Laser Receiver - 1026030-01
The LS-100D digital laser sensor is designed to increase speed and productivity on any job, by providing the perfect blend of operator-friendly technology and enhanced precision for elevation and vertical alignment control. The LS-100D Topcon receiver has 4 accuracy resolutions from ±0.5mm to ±10mm and a 90mm reception height for the extra-wide beam capture sensor. This extra-wide beam capture also has strobe-proof protection, so you can be confident you are getting an accurate and quick result.
The LS-100D Topcon laser level receiver has strong magnets embedded for vertical and horizontal operation, which is ideal for steel erections or excavation grade checking. The LS-100D Topcon receiver also has a number of operator-friendly features, including bright and large LCD displays (front & back) which are readable even in strong sunlight. It also has three coloured LEDs and a hold button for locking the display to read elevation results. The LS-100D Topcon laser receiver that is available for sale is the ideal partner for the RL-SV2S, RL-H5A, or the RL-200 series.
- Working Range (diameter) Up to 800 m
- 90mm detection window
- Magnets for vertical steel erection
- On-Grade Resolution ±0.5, ±1.0, ±2.0, ±5.0, ±10.0 mm
- 45-hour battery life
- Vertical Detector Range: 90mm
- Horizontal Detector Range: ±45°
- Strobe Light Suppression: Yes
- Operating time: Up to 45 hours
- Auto Shut off: Approx. 30 minutes
- Dust/Water Rating: IP67
- Operating temperature: -20° to 50°
- Magnet Mount: Two magnets on top
- Laser Colour: Red
- Brand: Topcon
- Warranty: 1 Year
- Net Weight (kg): 0.6
- Product Length (mm): 534
- Product Width (mm): 280
- Product Height (mm): 229
- IP Rating: IP67
- ±0.5mm
- ±1 mm
- ±2 mm
- ±5 mm
- ±10 mm
- 1 x LS-100D Laser Receiver
- 1 x Holder 110 Holder
- 1 x 'AA' Battery
- *Charger not included.
