Norton Clipper Saw CM43 Saw With Swivelling Head 45° Mitre Cut 70184631438

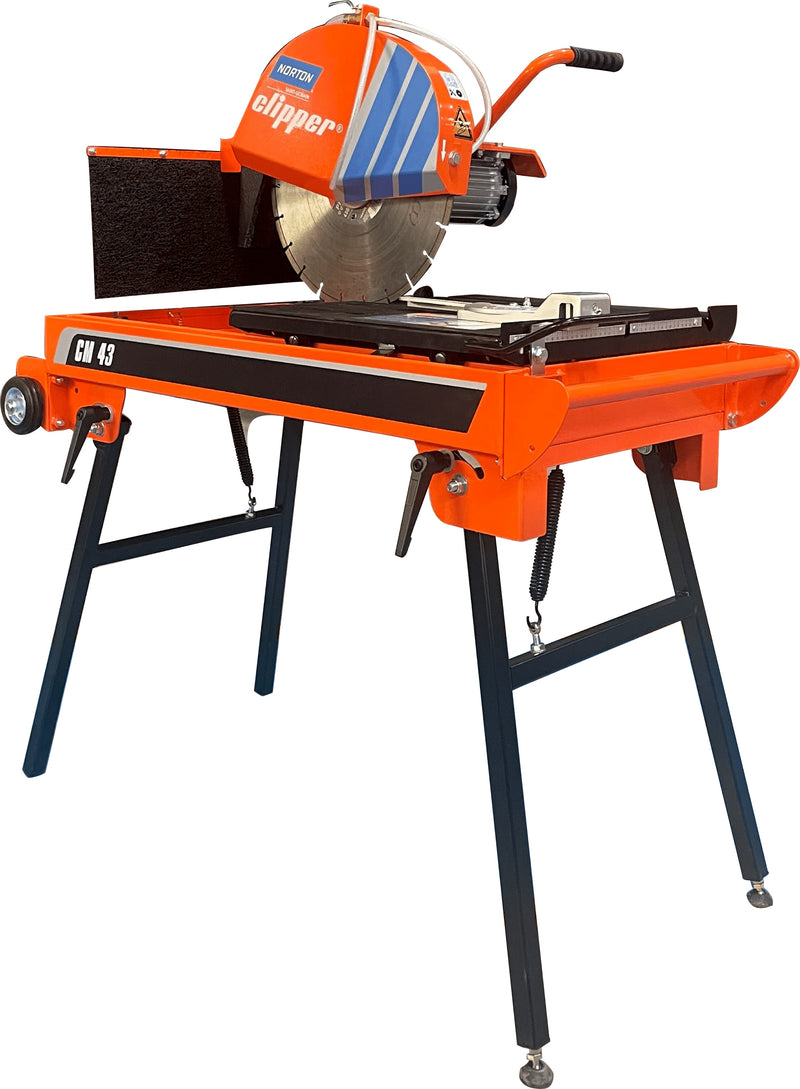

Norton Clipper Saw CM43 Saw With Swivelling Head 45° Mitre Cut

The CM 43 is Norton Clipper's latest model stone saw.

Features:

• The Norton Clipper CM43 is a light and highly portable table saw.
• Being wider and longer than most comparable machines on the market, 60 x 60 cm tiles can be easily divided into 30 cm halves.
• In addition to a strong frame, folding table legs and stable support table, it also features a rotating cutting head.
• Swiveling cutting head for miter cuts (45°)
• Wide support table with long reinforced frame for cutting 60 x 60 cm boards into 30 cm halves
• Non-slip surface, inclined rollers and transport lock of the support table ensure comfortable use
• Variable angle cutting guide with precise degree scale for quick and easy cutting without separate accessories
• Water pump with quick-change coupling, quick and easy maintenance without electrician

Technical data

• Voltage 230 V
• Power 2.2 kW (3 HP)
• max. saw blade 400 mm
• Axle hole 25.4 mm
• max. cutting depth 90° / 45°: 135 / 90 mm
• max. cutting length 670 mm
• max. material height 200 mm
• Dimensions saw table 500 x 540 mm
• Speed ​​2800 min-1
• Sound power 92 dB (A)
• Sound pressure level dB (A) 80 dB (A)
• Dimensions 1187 x 620 x 1360mm
• Transport dimensions 1187 x 620 x 740 mm
• Weight 90 kg

Included

• Supplied without saw blade
