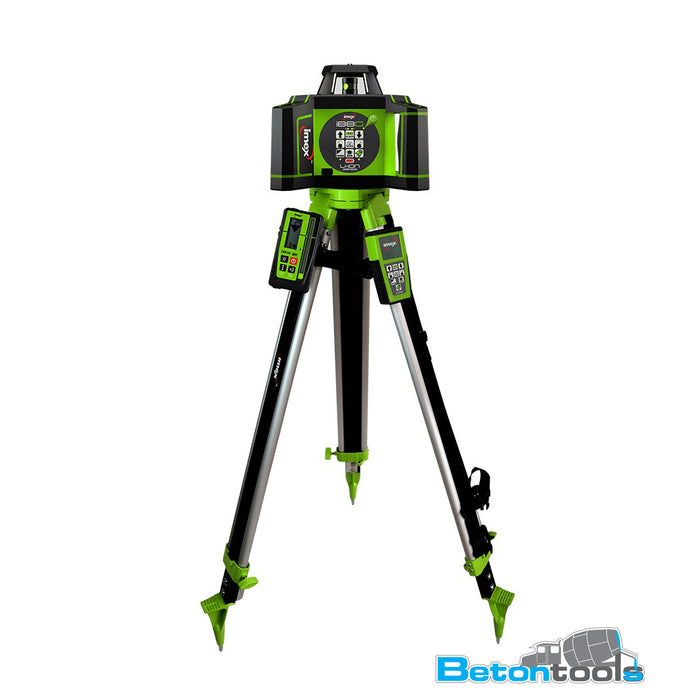

Imex H/V Green Beam Rotating laser level 012-I88G

SKU 012-I88G
Original price $1,780.91 - Original price $1,780.91
Original price
$1,780.91  +GST
$1,780.91 - $1,780.91
Current price $1,780.91  +GST
Availability:
In stock

With self-levelling, grade slope function, scan mode, horizontal and vertical, remote controller and 9Ah lithium-ion mm Digital Detector battery the Imex range represents excellent value with versatile capabilities for a full range of construction functions. Combined with this is the highly visible heavy duty and robust, water and dust-proof case, with a fully enclosed laser diode for years of trouble-free use. A sensor based self-levelling system utilizing a level sensor and stepping motor gives excellent levelling ability and enhanced accuracy.


The simplified design elements and robust componentry also mean reduced calibration and service requirements. All backed by Imex warranty, service and innovative approach. The i88G laser comes with a new green beam laser diode. The human eye responds many times better to green than red, subsequently the laser diodes use less power for better performance, run cooler are safer and perform better in both exterior and interior. Potential eye damage is minimized and the laser line is more accurate and precise.


Feature:

  • Robust construction tough horizontal/vertical laser level.
  • Horizontal/Vertical self levelling (electronic). 600m range. Dual manual grade slope.
  • 9Ah lithium-ion battery approx. 24 hours run time
  • USB quick charge port with car charger
  • LRX10 Digital Detector in mm reading (German made)
  • 90mm Detector reading ultra fine, fine, medium, course and ultra course.
  • Scan Mode Allows for part beam rotation in selected working environments, i.e. on interior walls, busy work-sites where other laser interference may be present. Various scan lengths and rotation placement.
  • Dual Grade Grade slope to 5° (8.8%) in two directions, X and Y axis Simultaneously for true grade control. Ideal for pipe layout or concrete slab falls.
  • Plumb Spot Top and bottom plumb spot beam to assist in set ups over a point.
  • Accuracy +/- 1.5mm @ 30 metres for excellent results every time.
  • Remote Control Panel allows grade or other functions to be carried out up to 20 m away from the instrument, for true one-man operation and greater efficiency.
  • Hi-Visibility Case unique Imex feature, easy to see on the busiest construction site,  minimises the risk of the unit being bumped, increasing safety and accuracy.

Specification:

  • Self Levelling Range: +/-5°
  • Working Distance: 600m Diameter
  • Function: Horizontal/Vertical
  • Scan Mode: Yes, 0°, 10°, 45°, 90°, 180°
  • Slope Mode: Yes Single manual grade to 5° 8.8%
  • Accuracy: 1.5mm @ 30m
  • Rotation Speeds: 0, 60, 120, 300, 600 rpm
  • Waterproof/Shockproof:  IP66
  • Light Source: Red 635nm Class II
  • Power: 9 Ah 3.7v lithium-ion
  • Detector: LRX10 Double Sided
  • Working time continuous use: 40hrs approx Red
  • Charging Time: 4 hours in unit or removed from unit
  • USBC Charging: Yes; including 12v car charger
  • High Wind Sensitivity Re-set: Yes
  • Remote Control: Yes, iCR8
  • Weight Unit Only: 2.48kg
  • Detector German Made: LRX10 Double Sided
  • Detector Pick Up: 90mm -30mm to +60mm
  • Detector Reading: Ultrafine 0.5mm | Fine 1.0mm | Medium 2.0mm | Course 5.0mm | Ultra Course 10.0mm
  • Detector Power: 1-AA > 50 hrs run
  • Inclusions: Unit, LRX10 Detector, Remote control unit, USB cable, 9.0 Ah Lithium battery, Car charger, target plate, hard carry case.
