Stabila LAX 300 G Cross Line Plus Plumb Point Laser
Stabila LAX 300 G Cross Line Plus Plumb Point Laser
LAX 300 G cross line plus plumb point Green laser lines for optimum visibility in bright indoor lighting conditions.
The LAX 300 G is the ideal partner for interior construction professionals who need accurate laser lines with optimum visibility. The innovative STABILA GREENBEAM technology provides razor-sharp, extremely bright, long laser lines to make your work even more efficient and productive. You can perform plumb-line and levelling work on the floor, wall and ceiling at the same time €“ making the laser a true all-rounder with numerous areas of application.
Advantages
- Self-levelling line laser with plumb-line dots.
- Work quickly and directly on the fine laser lines using STABILA GREENBEAM technology €“ with optimum visibility up to 30 m.

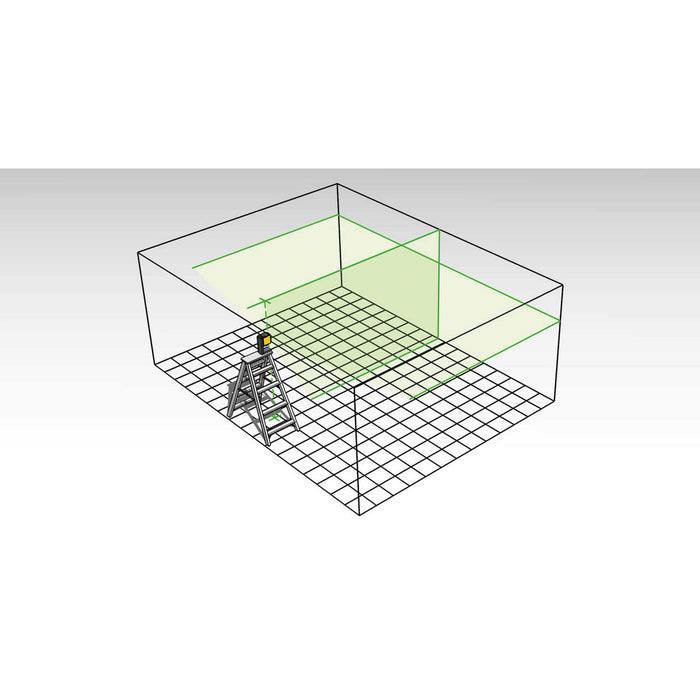

- The versatile technology provides 1 horizontal line, 1 vertical line and plumb-line dots upwards and downwards.
- The vertical line almost covers the entire room.
- The latest generation of energy-saving laser diodes enables an operating time of up to 15 hours.
- Quick self-levelling function thanks to pendulum technology designed for the construction site.
- Easy to change functions using single-button operation.

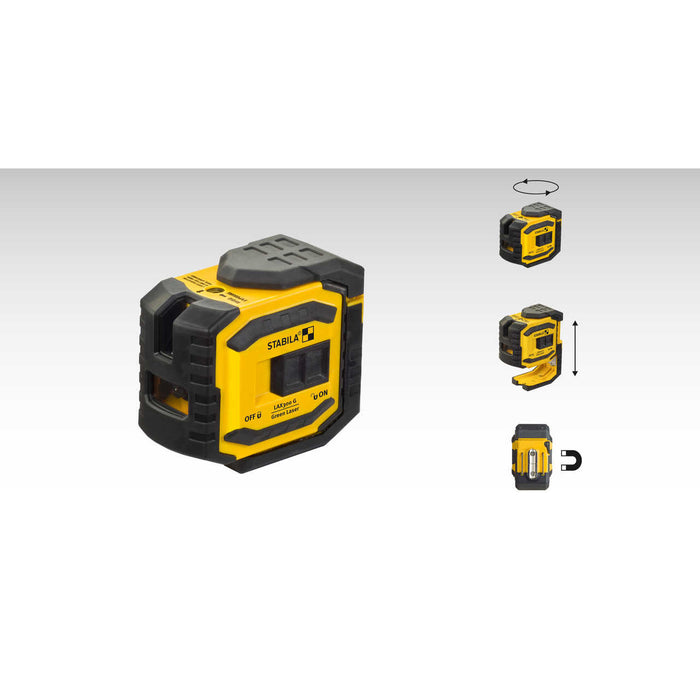

- Compact housing with extendable foot for height adjustment for working directly on U-profiles.
- Versatile use: can be used on the floor, on a tripod (1/4€œ thread), with rare-earth magnets on metallic objects or on the wall bracket.
- Shock-absorbent STABILA soft grip casing.
- The laser can be pivoted 360° inside the housing.
- Protection of the optics against dust and scratches in park position.
- Protection class IP 54.
- Belt pouch.
Application examples

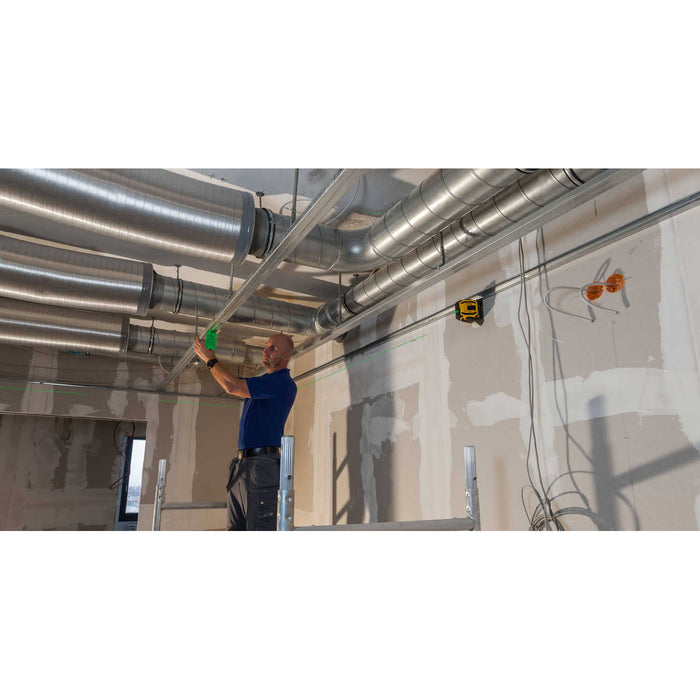

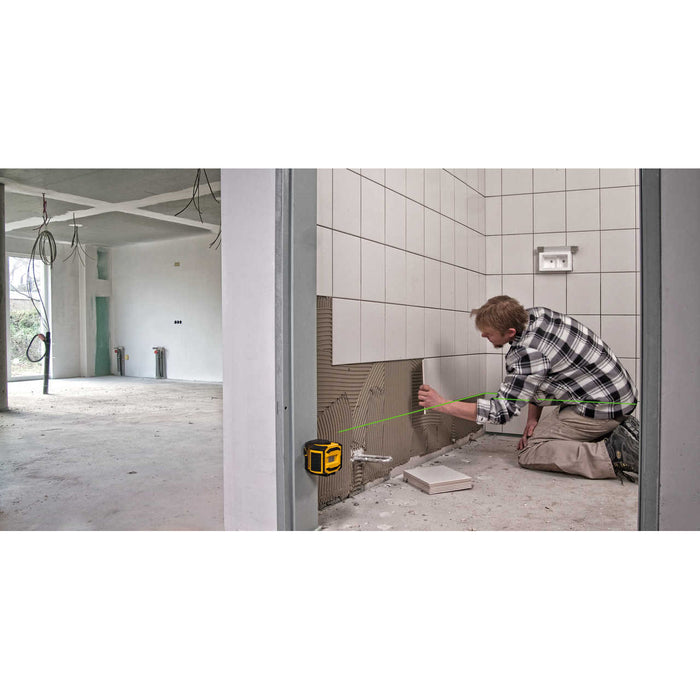

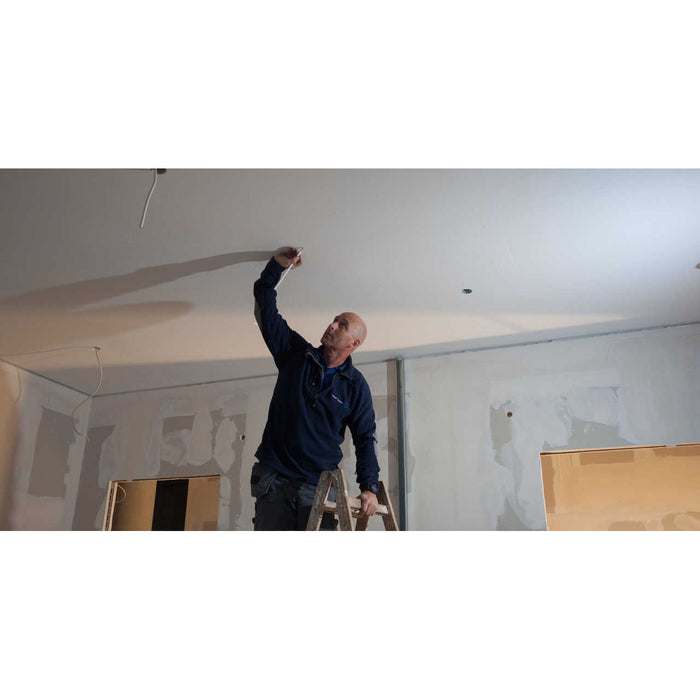

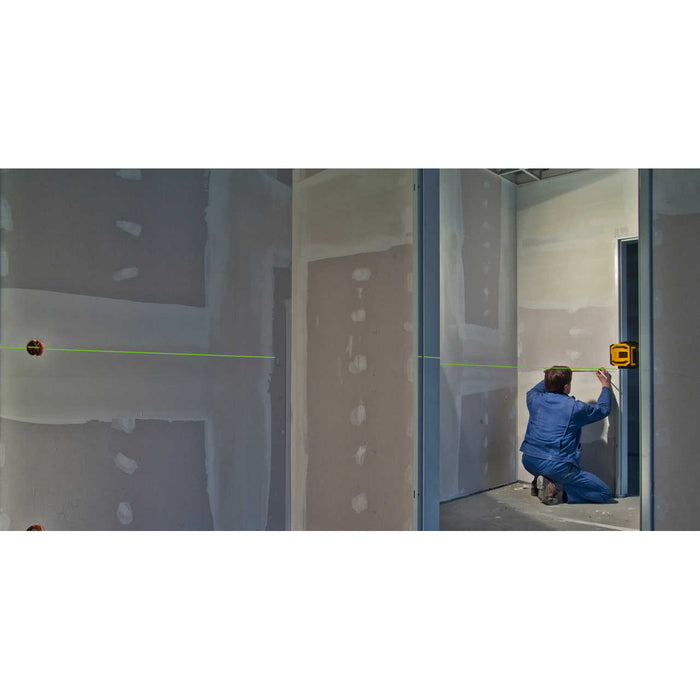

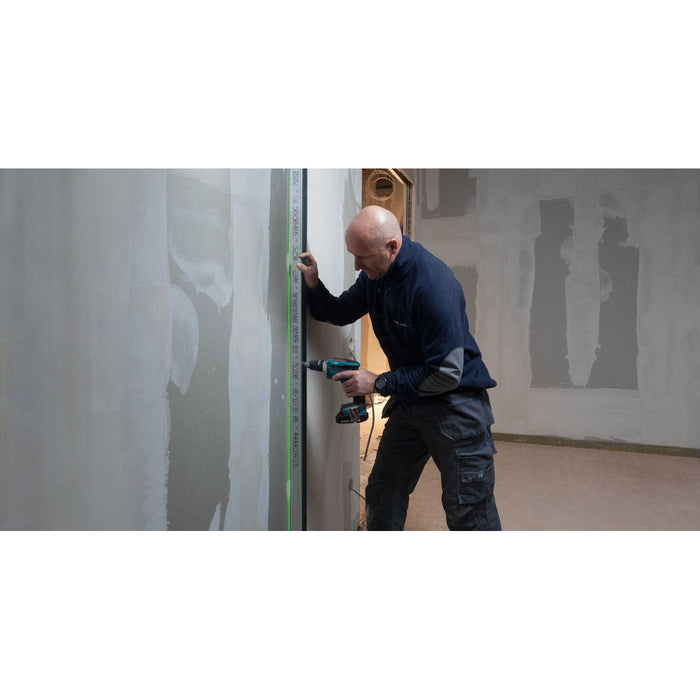

In drywall construction €“ suspending ceilings, positioning interior and partition walls, fitting U-profiles and transferring layouts from the floor to the ceiling. In electrical installation work €“ fitting and aligning electrical installations. For tiling work €“ marking out the tile layout. In window fitting €“ for levelling the window height. For joinery €“ construction of kitchen cupboards, aligning the worktops.
Technical Specifications:
- Technical data
- Laser class: 2
- Output: < 1 mW
- Laser wavelength: 510 - 530 nm
- Self-levelling range +/-: 4.50°
- Levelling accuracy +/-: 0.30 mm/m
- Line straightness +/-: 0.20 mm/m
- Laser beam accuracy (up) +/-: 0.30 mm/m
- Laser beam accuracy (down) +/-: 0.40 mm/m
- Measuring range of visible line: 30 m
- Operating life: 15 h
- Protection class: IP 54
- Tripod connection: 1/4"
