Topcon DT-305 5” Digital Theodolite - 1034419-04

SKU 1034419-04
Original price $8,374.59 - Original price $8,374.59
Original price
$8,374.59  +GST
$8,374.59 - $8,374.59
Current price $8,374.59  +GST
Availability:
In stock

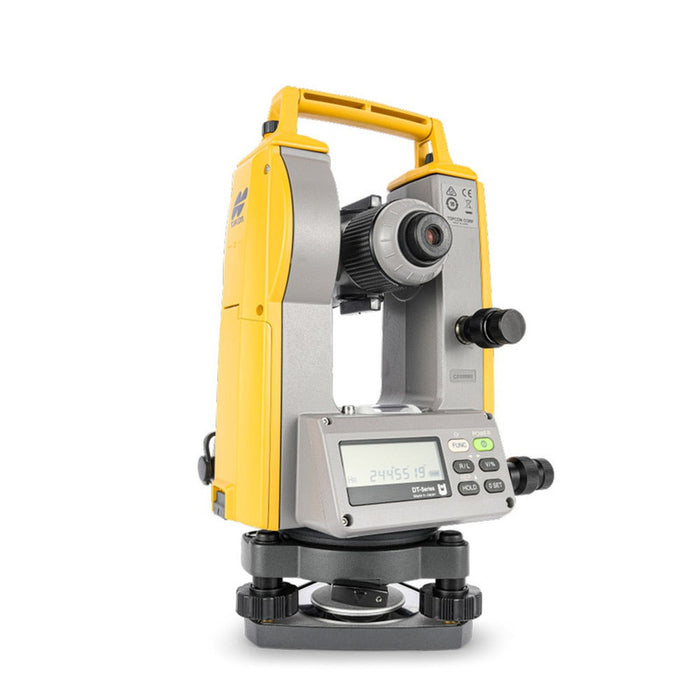

Topcon DT-305 5” Digital Theodolite

The Topcon DT-305 you’ll be up and working fast, thanks to its simple interface and large, easy-to-see Dual Side backlit LCD. There’s an optical plummet that makes set up over a control point easy, and a tilt sensor that provides ±3 minute angle correction. The DT-300 Series features magnification of 30x, a super-short 0.9m minimum focus distance for those tight areas, and angle accuracies of 5 arc seconds.

The DT-305 Digital Theodolite features lightweight, compact alignment and angular measurement device which boasts up to 28 workdays of power through Alkaline or Li-ion Battery, Tilt Angle compensation and the highest water/dust protection in its category (IP66) paired with expert convenience.

  • High-accuracy (5” model) measurements - 30x Magnification
  • Ultra-rugged IP66 - Dust/Heavy rain protection
  • Compact and light weight
  • Long-lasting AA battery life (Up to 30 Working Days) Topcon Li-ion Optional
  • Easy-to-use Dual large LCD backlit displays
  • Tilt Angle Vertical Compensator (Automatic)
Specifications Telescope
  • Aperture 45mm
  • Magnification 30x
  • Field of view 1°30'
  • Minimum Focus 0.9m
  • Stadia Ratio 100
Angle Measurement
  • Method Rotating Absolute Encoder
  • Minimum Reading
  • § 1" (0.0002 gon/0.01 mil)/5" (0.001 gon/0.1 mil) Selectable
  • Accuracy
  • 5" (0.0015 gon/0.025 mil)
Tilt Angel Compensator
  • Type Automatic Vertical Compensator
  • Range ±3' (±0.0555 gon)
Optical plummet
  • Magnification 3x
  • Minimum focus 0.5m
Sensitivity of levels
  • Circular level 10'/2mm
  • Plate level 30"/2 mm
  • Power supply
  • 4x AA Dry Cells or BDC71 (Optional)
Includes
  • DT-305 Digtal Theodolite
  • Plumb bob
  • Tool Kit
  • Waterproof Cover
  • Lens Cloth
  • Case
  • Australian Calibration Certificate
