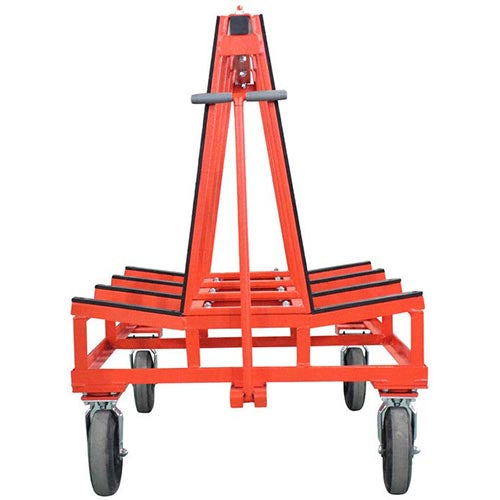

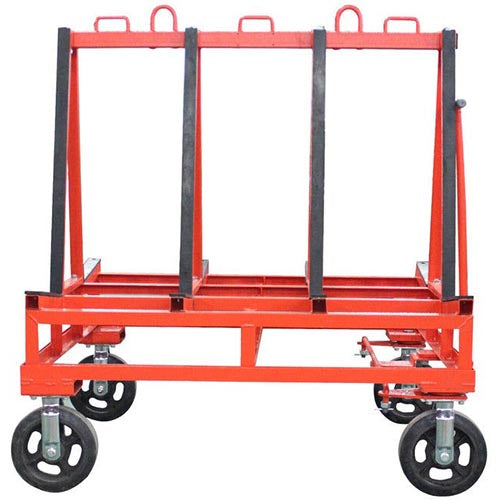

Abaco Machines One Stop A-Frame
The Abaco One Stop A-Frame is designed for transporting material and storing it in the shop or at the job site.
The slab/glass sheets are placed on special rubber profiles and secured with four (4) ratchet securing bars. The center section can be used to store tools, small back splash, etc.
The frame features two (2) eyelets that can be used to lift the frame with an overhead crane.
Space is provided on all sides for forklift transport base.
Quick release mounting pins change the unit from a mobile A-frame to a stationary A-frame.
Specifications:

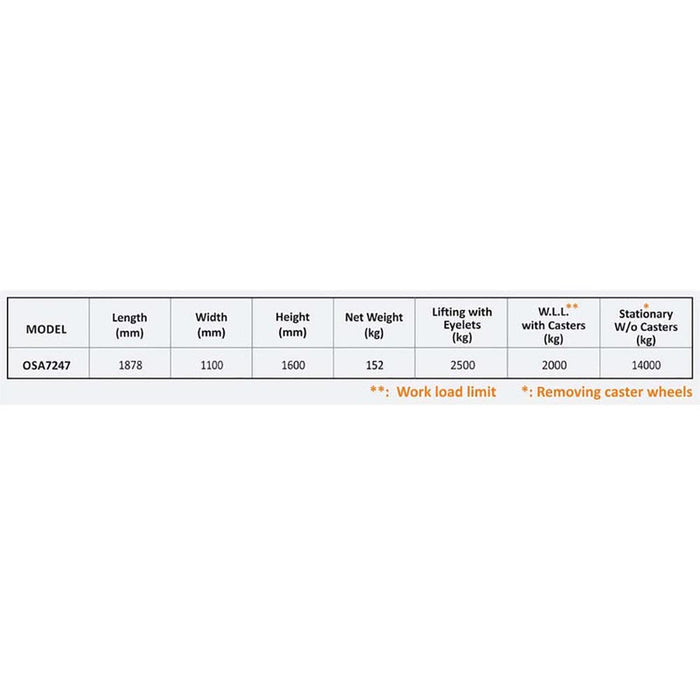

OSA-7247
- Length: 1824mm
- Width: 1100mm
- Net Weight: 167Kg
- Lifting with Eyelets: 2500Kg
- Rolling Capacity: 2000Kg
- Stationary W/O Casters: 14000Kg
OSA-7263
- Length: 1824mm
- Width: 1100mm
- Height: 1980mm
- Net Weight: 188Kg
- Lifting with Eyelets: 2500Kg
- Rolling Capacity: 2000Kg
- Stationary W/O Casters: 14000Kg

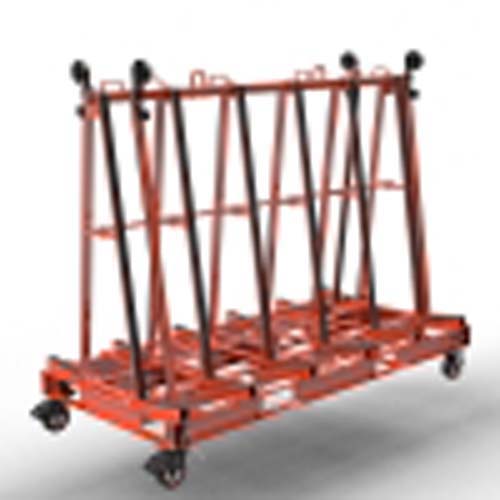

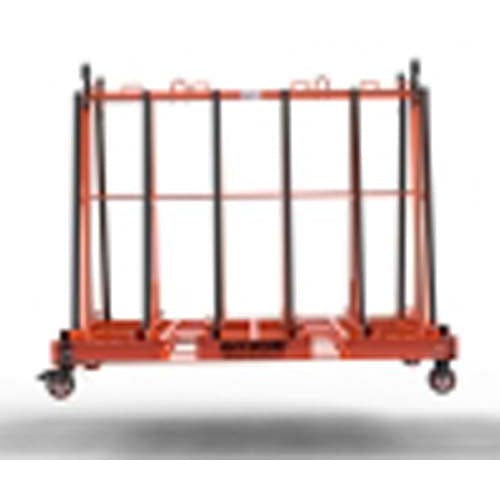

OSA-8756
- Length: 2190mm
- Width: 1100mm
- Height: 1800mm
- Net Weight: 197.4Kg
- Lifting with Eyelets: 2500Kg
- Rolling Capacity: 2000Kg
- Stationary W/O Casters: 14000Kg

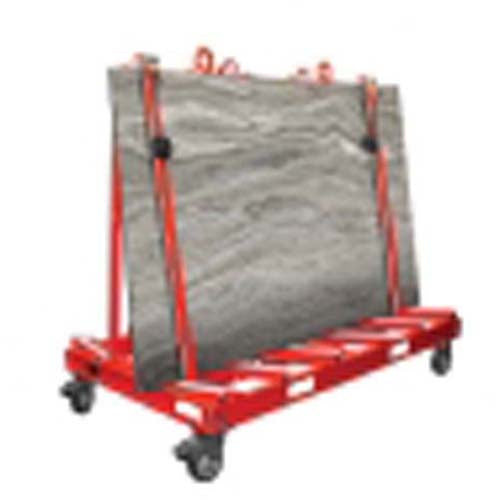

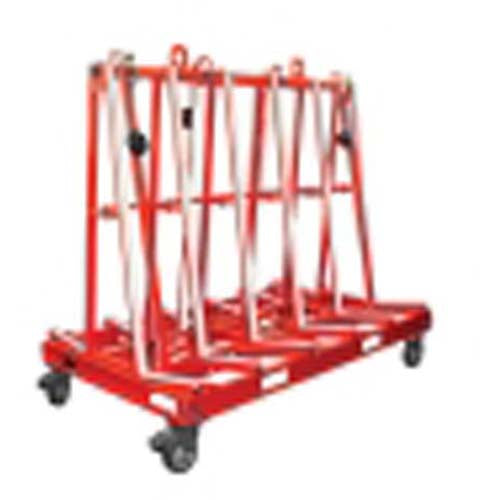

OSA-8763
- Length: 2194mm
- Width: 1100mm
- Height: 1980mm
- Net Weight: 210Kg
- Lifting with Eyelets: 2500Kg
- Rolling Capacity: 2000Kg
- Stationary W/O Casters: 14000Kg
