Battipav Professional Tile Cutter

Battipav Professional Tile Cutter

Professional manual tile cutter for straight and diagonal cuts of ceramic,single-fired and stoneware material.

• Aluminium magnetic breaking foot with rubber to protect and avoid scratching the tiles.
• Worktops with specially designed springs guarantee a rapid separation of cut tile and provides an excellent finish result.
• Strong aluminium body creating a rigid yet, lightweight machine.

Equipped with

• Ganiometric square
• Carriage with 2 ball bearings
• Lateral extensions for large format tiles

Specifications of ART6601EV

• Cutting Length: 880mm
• Max Size Tile For Diagonal Cuts: 620x620mm
• Cutting Thickness: 5-15mm
• Cutting Wheel: 015 x 6 x 1.5 mm
• Packing Dimension: 1246x285x265 mm
• Net Weight: 13.0 kg

Specifications of ART6850EV

• Cutting Length: 630mm
• Max Size Tile For Diagonal Cuts: 440x440mm
• Cutting Thickness: 5-15mm
• Cutting Wheel: 015 x 6 x 1.5 mm
• Packing Dimension: 996x285x265 mm
• Net Weight: 9.5 kg

Specifications of ART61000EV

• Cutting Length: 1630mm
• Max Size Tile For Diagonal Cuts: 1150x1150mm
• Cutting Thickness: 5-15mm
• Cutting Wheel: 015 x 6 x 1.5 mm
• Packing Dimension: 1996x285x265 mm
• Net Weight: 19.9 kg

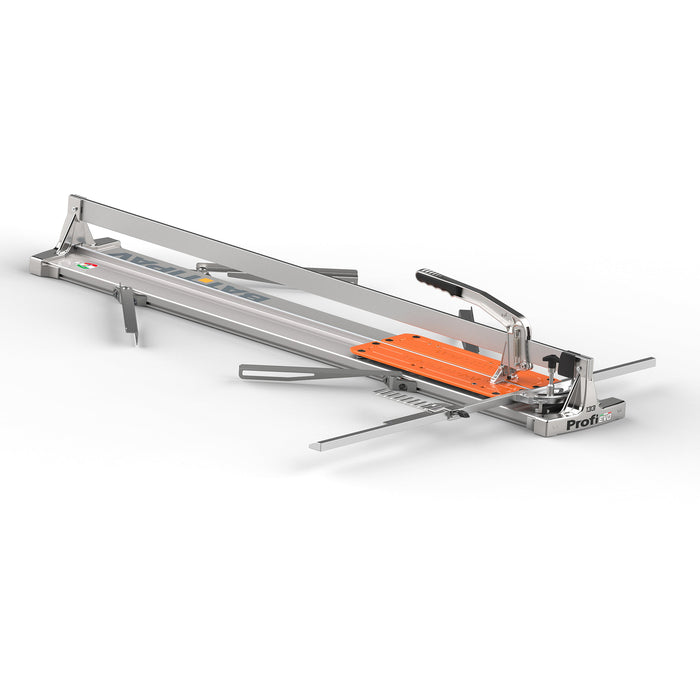

Specifications of ART61300EV

• Cutting Length: 1330mm
• Max Size Tile For Diagonal Cuts: 940x940mm
• Cutting Thickness: 5-15mm
• Cutting Wheel: 015 x 6 x 1.5 mm
• Packing Dimension: 1696x285x265 mm
• Net Weight: 17.0 kg

Specifications of ART61600EV:

• Cutting Length: 1030mm
• Max Size Tile For Diagonal Cuts: 720x720mm
• Cutting Thickness: 5-15mm
• Cutting Wheel: 015 x 6 x 1.5 mm
• Packing Dimension: 1396x285x265 mm
• Net Weight: 14.1 kg
