HOPPT RIDE-ON Kubota Diesel Roller - 1620kg

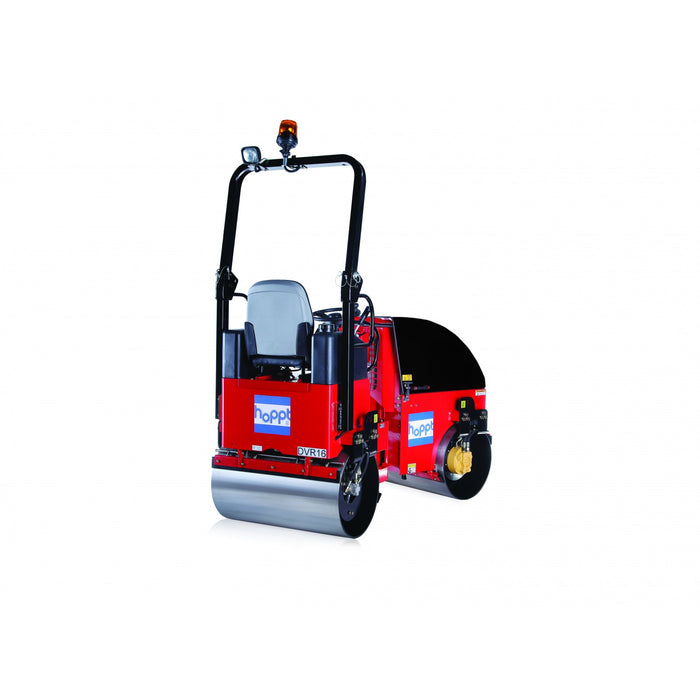

Ride-On Roller The DVR16 was the result of the HOPPT® Research and Development Team. With safety, comfort, compaction performance, reliability and ease of maintenance as the guiding principles to the design, the DVR16 has definitely fulfilled, if not exceeded the expectation of the market. Both feature a dual-drum drive system, powered by KUBOTA® Diesel engine. Packed with excellent control and compaction performances with easy access for maintenance.

Features:

• High Quality components for long life and easy maintenance.

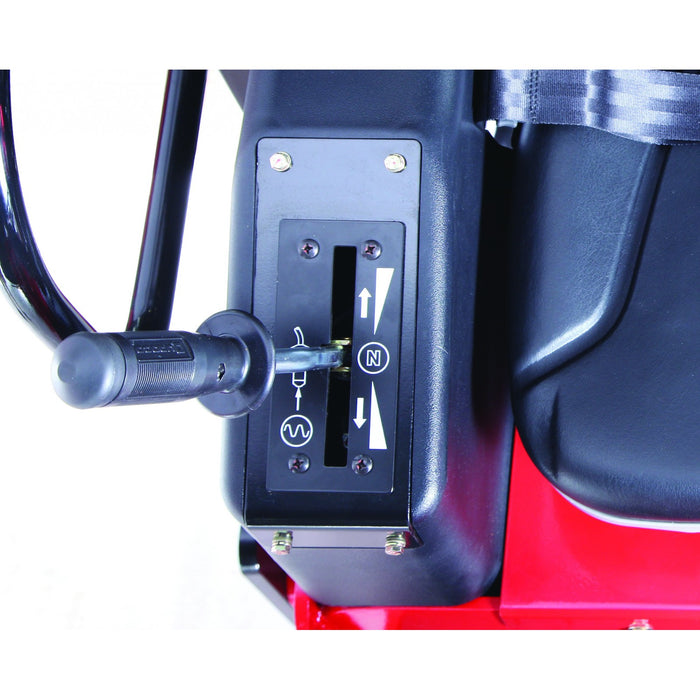

• Dual Vibration mode: Front only or dual drum
• Clearly laid out operating panel

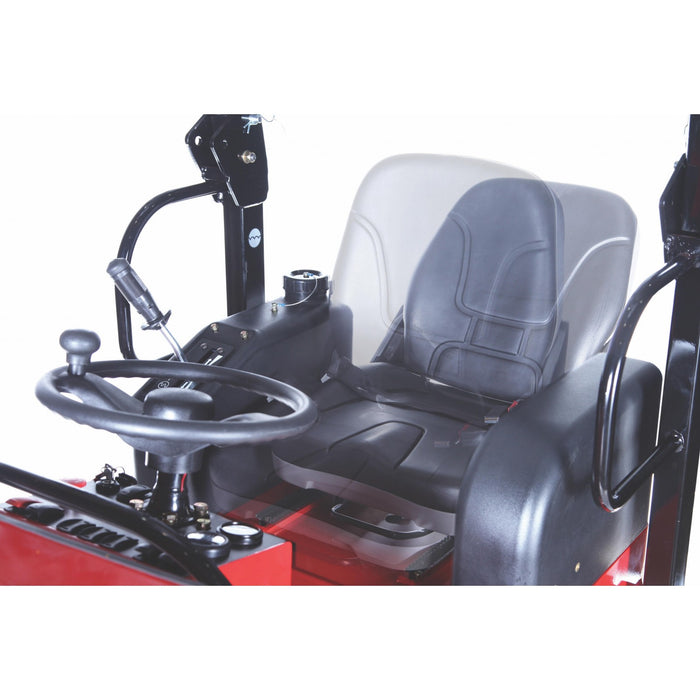

• Ergonomically engineered for optimum comfort and maximum productivity

Specifications

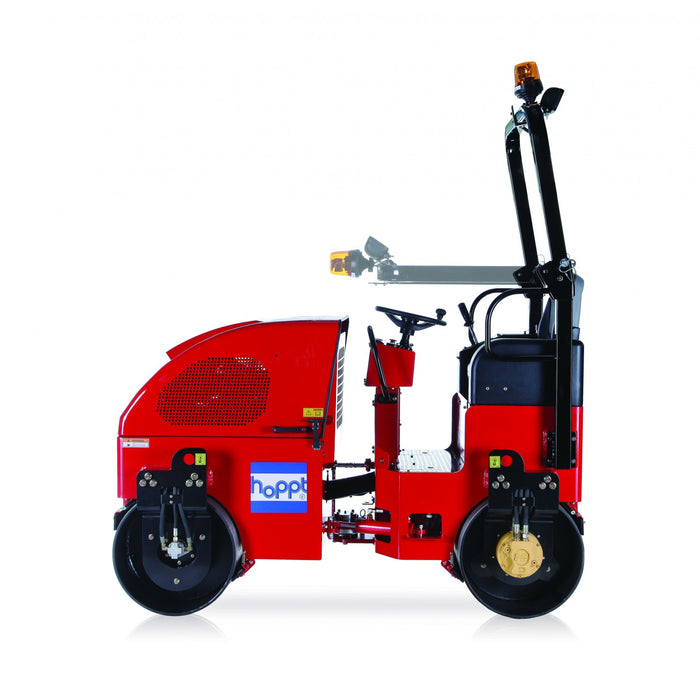

• Machine Dimension: L x W x H (mm): 2,095 x 980 x 2,568

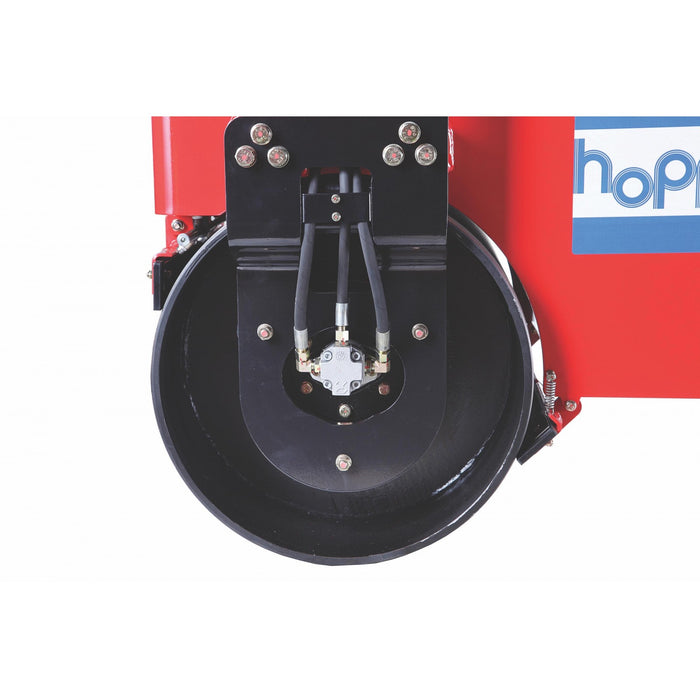

• Drum Size: D x W (mm): Width (900) Option(1000), Diameter (560), Shell Thickness (15) Side Clearance (40), Curb Clearance (337), Chamfered Edge Finishing
• Operating Weight (kg): 1,730
• Centrifugal Force (kN): 16
• Vibration Frequency: Hz (vpm): 66.7 (4,200)
• Water Tank Capacity (L): 110
• Hydraulic Oil Tank (L): 30
• Fuel Tank Capacity (L): 31
• Maximum Speed (km/h): 10- Highest Speed
• Height: Top of the Steering Wheel (mm): 1,534
• Height: Top of the ROPS (mm): 2,568
• Shipping Weight (kg): 1,790
• OUTSIDE Turning Radius (mm): 3,100
• Drum Weight (kg): Static Front and Rear: 376
• Drum Wiper Type: Spring-Loaded Self-Adjusting Steel Wiper
• Vibrating System: Nominal Amplitude 0.4, Gear Pump- POCLAIN® Hydraulics, FRANCE, Motors- CASAPPA®, ITALY
• Vibrating Drums: Front/Both
• Propulsion: DRUM DRIVE: Axial Piston Puump with Variable Displacement and 2 Radial Piston Motors from POCLAIN® Hydraulics, FRANCE
• Brakes: Gradability (Theoretical): 35° PARKING: SAHR (Spring-Applied Hydraulically Released)
• Steering System and Design: 1 Cyclinder, Double-Acting Hydraulic System with a Maintenance-Free centre Pivot Articulation of ±30° Outside Turning Radius: 3,100 mm
• Water System: Pressurised Electric Diaphragm Pump. Filters of 100 Mesh Screen@ Nozzle with 80 Mesh in-Line
• Warranty Period: 1 Year
