Max Rebar Tying Tool up to 20mm x 20mm with 1.0 mm Wire RB401T-E

Rebar Tying Tool up to 20mm x 20mm with 1.0 mm Wire

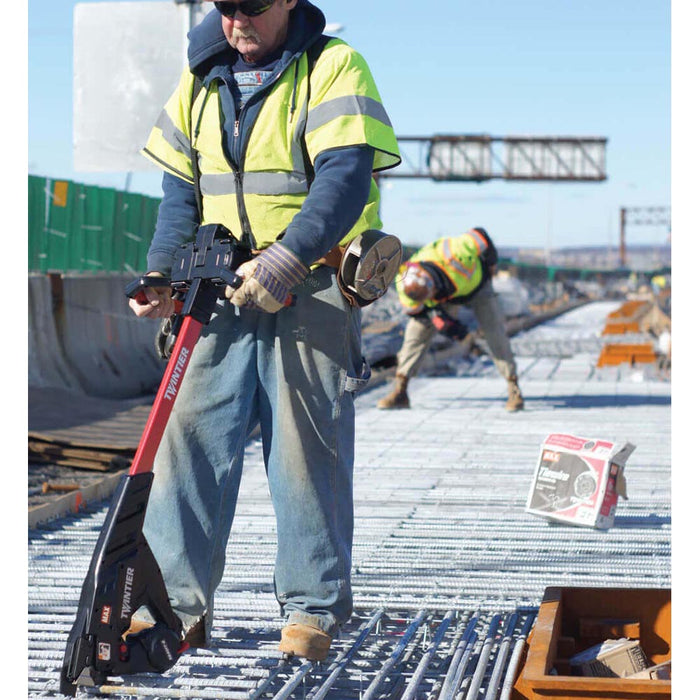

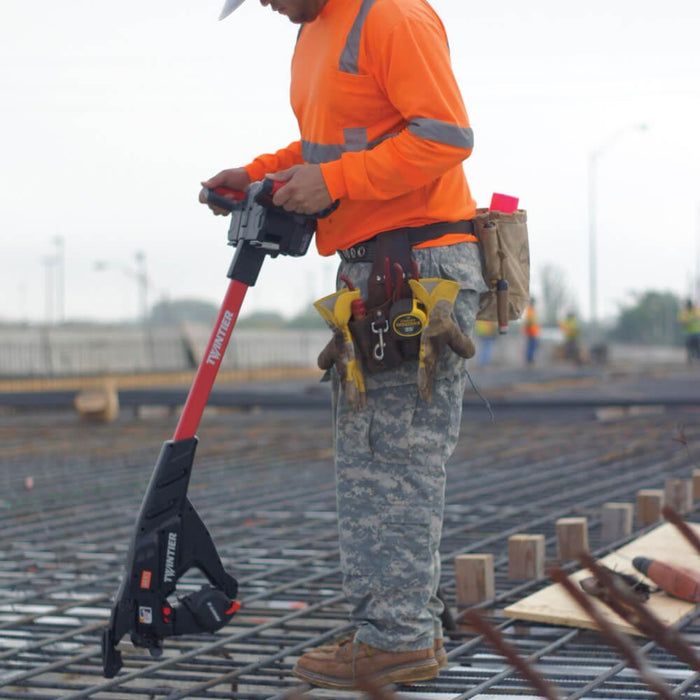

The RB401T-E is ergonomically designed to reduce back strain. The extended frame allows you to stand-up and tie rebar for concrete slabs. The RB401T-E uses the same battery and tie wire as the RB441T and RB611T TWINTIERs.

Features

Reduces Back Strain

The RB401T-E is an ergonomic solution for backbreaking slab work.

Triggerless Technology

An automatic contact mechanism allows the tool to instantly tie when pushed down over a rebar intersection.

Shorter Tie Height

The TwinTier's Wire Bending Mechanism (Pat. Pending) produces a shorter tie height. Less concrete is needed to fully cover a wire tie.

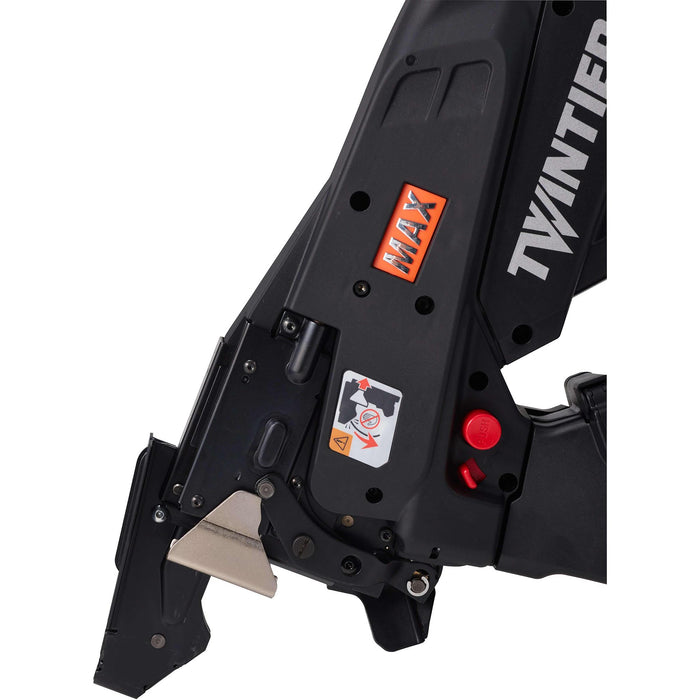

Slim Arm Fits

Slim arm fits easily at a 45 degree angle for tight ties.

Applications

• Road and Bridge
• Foundations
• Tilt-up
• Commercial Buildings

Specifications

• Weight: 4.6 kg
• Dimensions: 322mm(H) x 408mm(W) x 1100mm(L)
• Minimum Ties Per Coil: 155
• Maximum Ties Per Coil: 260
• Applicable Wire Product/GA: TW1061T / 19Ga, TW1061T-PC / 19Ga, TW1061T-EG / 19Ga, TW1061T-S / 19Ga
• Applicable Rebar Size: 10 x 10 - up to 20 x 20(Unit: mm)
• Ties Per Charge: 4000
• Tie Speed: Approx. 1/2 sec
• Battery Charge Time: 65 minutes full charge ( 50 minutes 80%)
• Battery: JPL91440A
• Charger: JC925A
