Topcon LS-B200 Machine Receiver - 1053268-03

SKU 1053268-03
Original price $2,784.40 - Original price $2,784.40
Original price
$2,784.40  +GST
$2,784.40 - $2,784.40
Current price $2,784.40  +GST
Availability:
In stock

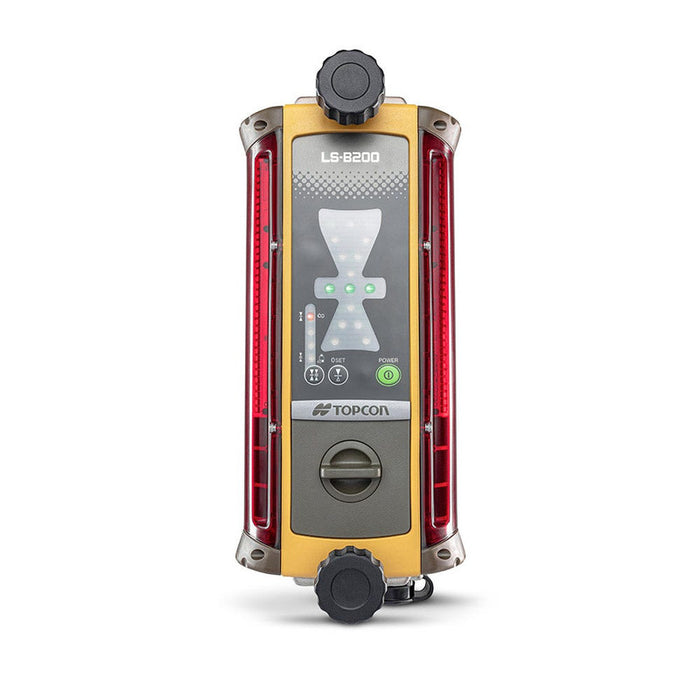

Topcon LS-B200 Machine Receiver

The LS-B200 Series of machine-mounted laser sensors are affordable grade indicate systems designed to improve grading and excavating production and accuracy. Easy to use with a fast setup, these depth control sensors can be mounted to your earthmoving machines in minutes. Attach any of the LS sensors to a piece of equipment, turn it on, bench in, and go to work. No more waiting for a grade checker or jumping off a machine to check your own grade. With Topcon’s laser sensors, you’ll know if you are above, below, or on-grade all the time. Put the LS-B200 Series laser sensor on a dozer, then move it to your excavator and then onto a grader. Because it’s that easy, contractors often want to equip all of their earthmoving machines with these production-boosting control systems. Loaded with features. Each sensor is packed full of features, such as an accuracy mode and battery life Indicator, plus a power save/auto cut-off function to save battery life. Choose from two different models that each provide 360º laser detection to keep your project moving ahead in challenging conditions.

  • 360º laser detection angle
  • Adjustable "On Grade" Accuracy
  • Up to 800m Detection Range (Diameter)
  • Large LED Indicators
  • Dust/Water Rating IP66
  • Pole Mount Unit
  • ISO 13766-1 Certification
Specifications
  • Detective range: 175mm
  • Detective angle: 360° (ON GRADE)
  • Detectable laser wavelength: 633~785nm
  • Laser Detecting Range (diameter): 800m (Using RL-200 Series)
  • Internal battery
  • C-size dry cells 4pcs.
  • Battery pack BT-83Q (sold separately)
  • External power supply: DC 10V to 30V
  • Continuous operating time:
  • Approx. 100hrs(Dry Cells
  • Approx. 50hrs (BT-83Q)
  • Operating temperature: -20°C~+50°C
  • Water proof: IP66
  • Dimensions (W/D/H): 158x166x357(mm)
  • Weight (Without cells): 2kg
  • Warranty: 1 Year
  • Net Weight (kg): 2
  • Product Length (mm): 440
  • Product Width (mm): 260
  • Product Height (mm): 380
Detective precision:
  • Mode1±3mm
  • Mode2±6mm
  • Mode3±15mm
  • Mode4±30mm
